UGS : 17400 Catégorie :

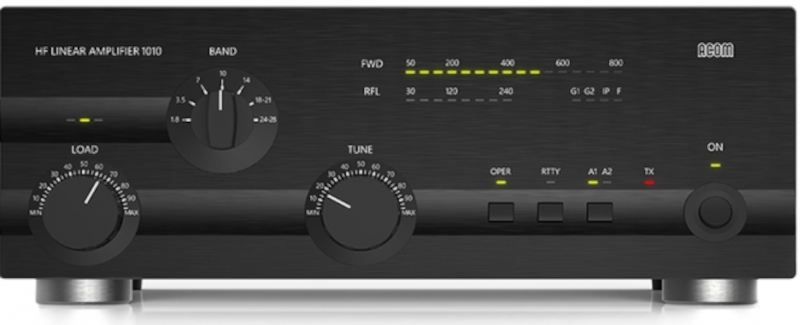

ACOM 1010 700W 160-10m


1800,00

  • Bandes 1,8 à 29,7MHz
  • Puissance 700W
  • Etage final 4CX800A

Quantité :

Partager :
ACOM 1010 specifications
  • Frequency Coverage: All amateur bands in the 1.8-29.7MHz frequency range; extensions and/or changes on request.
  • Power Output: 700 W PEP or 500 W continuous carrier.
  • Intermodulation Distortion: Better than 35 dB below rated output.
  • Hum and noise: Better than 40 dB below rated output.
  • Harmonic Output Suppression: Better than 50 dB below rated output.
  • Input and Output Impedances:

– nominal value: 50 Ohm unbalanced, UHF (SO239) type connectors;

– input circuit: broadband, VSWR less than 1.3:1, 1.8-30MHz continuously (no tunings, no switching);

– Bypass path VSWR less than 1.1:1, 1.8-30MHz continuously, 200 W maximum;

– Output (antenna) impedance matching capability: VSWR up to 3:1 or higher.

  • RF Gain: 11dB typically, frequency response less than 1dB (50 to 70 W drive power for rated output).• Primary Power: 85-132 V/170-264 V ac (100, 110, 120, 200, 210, 220, 230 & 240 V nominal taps), +10% -15% tol.), 50-60 Hz, single phase, 1200 VA.
  • Complies with CE safety and electromagnetic compatibility requirements as well as FCC-regulations (10 & 12 m band locks provided).
  • Size & Weight (operating): WxDxH: 406x315x150mm, 18kg (16×12.4×5.9 inches, 39.7Lbs).
  • Operating environments:

– temperature range: 0…+50 degs.Celsius;
– humidity: up to 95% @ +35 degs.Celsius.
– height: up to 3000m above sea level without output deterioration.

Antenna matching can be achieved in less than 10 seconds and at a quarter of nominal output power, which produces lower risk of interference to other stations and greater safety to the amplifier components.

Poids 4000 g
