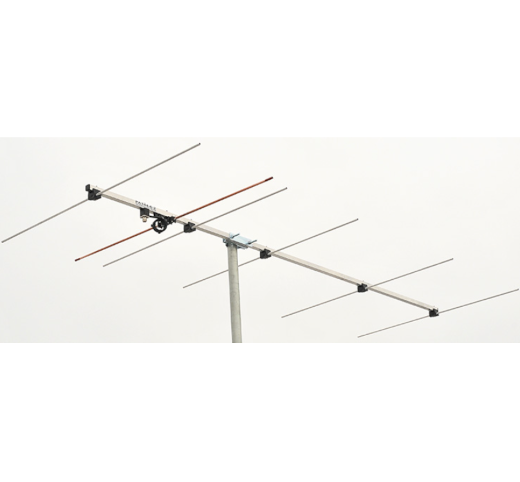

Antenne Yagi 6 Elements couverture totale bande 144 – 146 MHz . 2m6WA
SWR faible sur toute la bande. Support haute résistance “Goliath”
Gain excellent pour un boom de 2m . Antenne très efficace en mode Tropo, pour répéteur FM ou même en mode EME (au moins deux antennes couplées).
Electrical Specifications of 2m 6Element Wideband Antenna 2m6WA
Frequency Range: 144 – 146 MHz
Free Space Forward Gain: 11.3 dBi
Front-to-Back Ratio: 25 dB
-3 dB Horizontal Beamwidth: 47°
Polarization: Horizontal or Vertical
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 500W (By order “P” Power version 1500W)
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N”
Mechanical Specifications of 2m 6Element Wideband Antenna 2m6WA
Number of elements: 6
Element Diameter: 8 mm Aluminum tube
Dipole Diameter: 8 mm Hard Copper tube plastic coated
Longest element: 1040 mm
Element Mounting Position: Below the Boom
Balun and Connectors: Included
Boom Length: 2 m
Boom Size: 20 x 20 mm
Number of Boom Pieces: 2
Guy rope support: Not necessary. Strong boom
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Survival Wind Speed: 150 km/h
Transportation Length: 1.1 m
Antenna Weight: 1.8 kg
| Electrical Specifications 2 meter | |
| Frequency Range: | 144 – 146 MHz |
| Free Space Forward Gain: | 11.3 dBi |
| Front to Back Ratio: | 25 dB |
| 3 dB Horizontal Beamwidth: | 47° |
| Polarization: | Horizontal |
| Nominal Input Impedance: | 50 Ohms |
| SWR Across Entire Band: | < 1.2 |
| Maximum Power Input: | More than 500 W, 1500 W by order |
| Matching Method: | Direct feed through common mode balun |
| Input Connector: | “N” |
| Mechanical Specifications 2m | |
| Number of elements: | 6 |
| Element Diameter: | 8 mm Aluminum tube |
| Dipole Diameter: | 8 mm Hard Copper tube |
| Longest element: | 1040 mm |
| Element Mounting Position: | Below the Boom |
| Balun and Connectors: | Included |
| Boom Length: | 2 m |
| Boom Size: | 30 x 30 mm |
| Number of Boom Pieces: | 2 |
| Guy rope support: | Not necessary. Strong boom |
| Mounting Mast Diameter | 43 – 70 mm 1-11/16″ – 2-3/4″ OD |
| Survival Wind Speed: | 180 km/h |
| Transportation Length: | 1.1 m |
| Antenna Weight: | 1.8 kg |
