| Electrical Specifications 2 meter |
| Frequency Range: |
144 – 146 MHz |
| Free Space Forward Gain: |
10.1 dBi |
| Front to Back Ratio: |
30 dB |
| 3 dB Horizontal Beamwidth: |
55° |
| Polarization: |
Horizontal or Vertical |
| Nominal Input Impedance: |
50 Ohms |
| SWR Across Entire Band: |
< 1.2 |
| Maximum Power Input: |
More than 500 W, 1500 W by order |
| Matching Method: |
Direct feed through common mode balun |
| Input Connector: |
“N” |

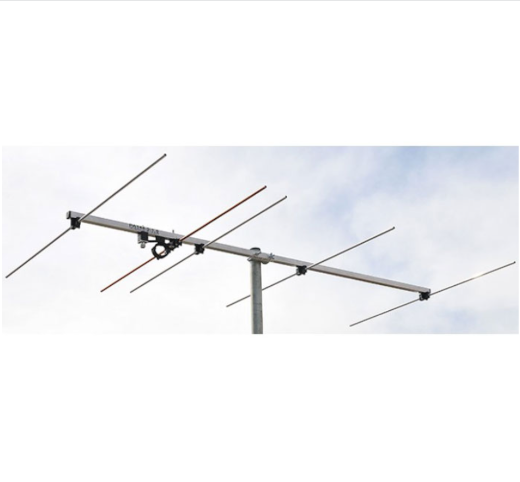

| Mechanical Specifications 2 meter |
| Number of elements: |
5 |
| Element Diameter: |
8 mm Aluminum tube |
| Dipole Diameter: |
8 mm Hard Copper tube |
| Longest element: |
1040 mm |
| Element Mounting Position: |
Below the Boom |
| Balun and Connectors: |
Included |
| Boom Length: |
1.46 m |
| Boom Size: |
20 x 20 mm |
| Number of Boom Pieces: |
1 |
| Guy rope support: |
Not necessary. Strong boom |
| Mounting Mast Diameter |
30 – 50 mm 1-1/4 – 2″ OD |
| Survival Wind Speed: |
180 km/h |
| Transportation Length: |
1.49 m |
| Antenna Weight: |
1.3 kg |
